Getzner Ceiling Hanger: Efficient Sound Insulation for Ceilings
Getzner Ceiling Hangers are premium, elastic decoupling products engineered for efficient sound insulation in suspended ceilings. They effectively reduce sound transmission, especially at low frequencies, and are available from Gitco-sa.com, your budget-friendly supplier in Saudi Arabia.
Description

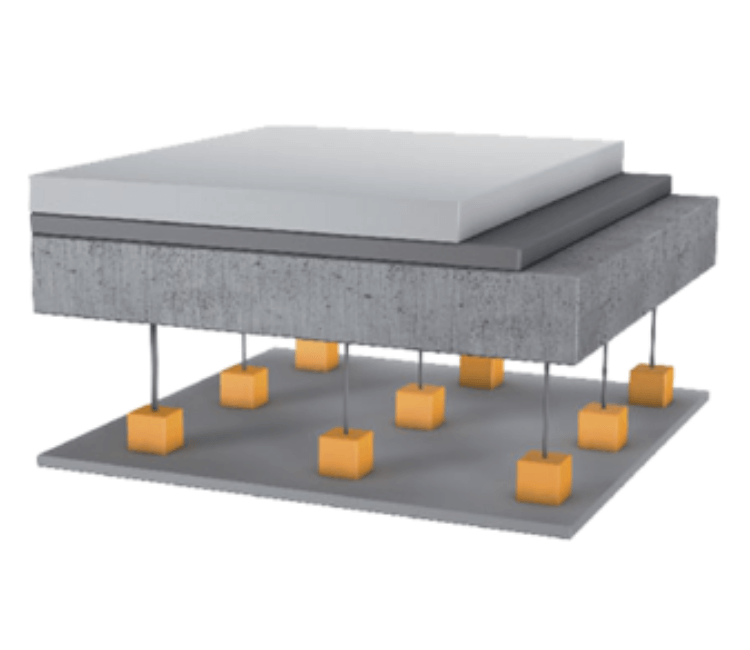

Getzner’s specialised Ceiling hangers (also known as Ceiling Isolators or Ceiling decouplers) provide highly effective solutions for the elastic decoupling of suspended ceilings. These innovative elements utilise high-performance polyurethane bearings to interrupt the transmission of structure-borne sound from the floor above to the ceiling below.
The design is optimized for effective noise reduction in the low-frequency range, achieving a low natural frequency of $\le 10$ Hz. Compared to conventional rigid attachment systems, using Getzner Ceiling hangers can significantly improve sound reduction, achieving up to 11 dB improvement in the $L_{n,w} + C_I 50-2500$ rating. This advanced sound control adds value to commercial and residential properties by creating quieter, more comfortable living and working environments.
Product Range / Variations
Gitco-sa.com offers a complete range of Getzner’s ceiling insulation products, ensuring a solution for every project:
-
Diverse Load Ranges: Products are available to match the requirements of various loads and acoustic specifications.
-
Installation Versatility: The range includes specialized connection types to suit different suspended ceiling systems and mounting situations.
Key Applications
-
Residential Towers: Isolating ceilings in multi-story buildings to reduce footsteps and impact noise.
-
Commercial Buildings & Offices: Creating quiet workspaces by preventing structure-borne sound transmission.
-
Acoustic Studios and Home Theaters: Essential for achieving true sound fidelity by completely decoupling the ceiling structure from the building frame.
Gitco-sa.com is your trusted supplier for a complete range of construction products. Not only do we offer this excellent, budget-friendly solution, but our product prices are also the Lowest for sound insulation products in the market. We serve all major areas, including Dammam, Al-Khobar, Al Jubail, Riyadh, Jeddah, and across Saudi Arabia.
Know more about Getzner Ceiling Hangers:
- What are Getzner Ceiling Hangers (or Isotop® Hangers)?They are specialized anti-vibration products used to elastically suspend various ceiling components, most commonly false/suspended ceilings or building services equipment (BSE) like pipework and ventilation ducts.
- What is the main purpose of using these hangers?Their primary purpose is to decouple the ceiling or suspended system from the main building structure, significantly reducing the transmission of structure-borne noise and vibrations.
- What materials are Getzner’s ceiling hangers typically made of?Getzner hangers (often branded Isotop® or Acoustics+Sylomer®) use a combination of materials, typically steel springs and high-tech polyurethane elastomers like Sylomer® or Sylodyn®, for superior isolation and damping.
- How do these hangers decouple the sound?The elastic element (spring or elastomer) absorbs the kinetic energy of the vibration/sound, effectively breaking the rigid path through which noise typically travels from the structural slab into the room below.
- How effective are they compared to standard rigid hangers?They are significantly more effective. Elastic decoupling with Getzner hangers can achieve a reduction of sound transmission even in the low-frequency range and improve the sound reduction index by up to 11 dB compared to conventional systems.
- What key technical specification should I look for?The most important specification is the Natural Frequency ($\mathrm{f}_0$) of the hanger. Getzner hangers are designed to achieve a very low natural frequency, often as low as 3.2 Hz (for Isotop® SD/Z), which is essential for isolating low-frequency sound.
- What load ranges are available for the ceiling hangers?Getzner offers a wide range of models to handle different loads, with options ranging from light loads (e.g., 3 kg) up to heavy loads (e.g., 420 kg for Isotop® SD/Z variants).
- What is the benefit of the spring element in the Isotop® hangers?Steel springs provide excellent deflection (displacement under load) and are highly effective for achieving a very low natural frequency, which is necessary for isolating vibrations from mechanical equipment.
- What temperature range can these hangers withstand?They are robustly designed for a wide range of operating temperatures, typically permissible from -30 °C to +70 °C.
- Do the hangers come in different sizes and connection types?Yes, they are available in different load-range variants and connection types (e.g., M8 or M10 internal thread) to suit various suspended ceiling and piping systems.
- Where are these premium hangers commonly installed?They are primarily used in projects where high acoustic standards are required, such as: recording studios, home theaters, nightclubs, residential apartments below noisy areas, and in the suspension of sensitive Building Services Equipment (BSE).
- Are they used for suspending suspended ceilings or mechanical equipment?They are used for both. Models like the Acoustics+Sylomer® are often used for dry linings/ceilings, while the Isotop® spring hangers are commonly used for heavy equipment like ventilation ducts, pipework, and fan coil units (FCUs).
- Do the ceiling hangers allow for simple installation?Yes, models like the Isotop® are designed for simple and flexible installation, often requiring just one attachment point.
- Is technical consultation required for selection?Yes, due to the critical nature of the isolation, an acoustic engineer should calculate the precise load per hanger and the required stiffness to ensure the system achieves the desired acoustic rating.
- Are they durable for long-term use?Yes. Getzner’s products, including the Sylomer® and steel springs, are known for their high degree of ageing resistance and long-term stability with minimal creep or settlement over decades.
- What is the advantage of Sylomer® in these hangers?Sylomer® offers high isolation values and excellent damping properties compared to materials like rubber or cork, making it superior for controlling sound in high-end acoustic applications.
- Do they reduce airborne noise or structure-borne noise more effectively?They are highly effective at reducing structure-borne noise (vibrations traveling through the ceiling) which then reduces the secondary airborne noise radiated into the room below.
- Can the hangers be used for wall linings too?Yes, Getzner also offers similar elastic decoupling products, such as wall lining brackets with Sylomer®, that are used to improve the acoustic performance of dry linings on walls.
