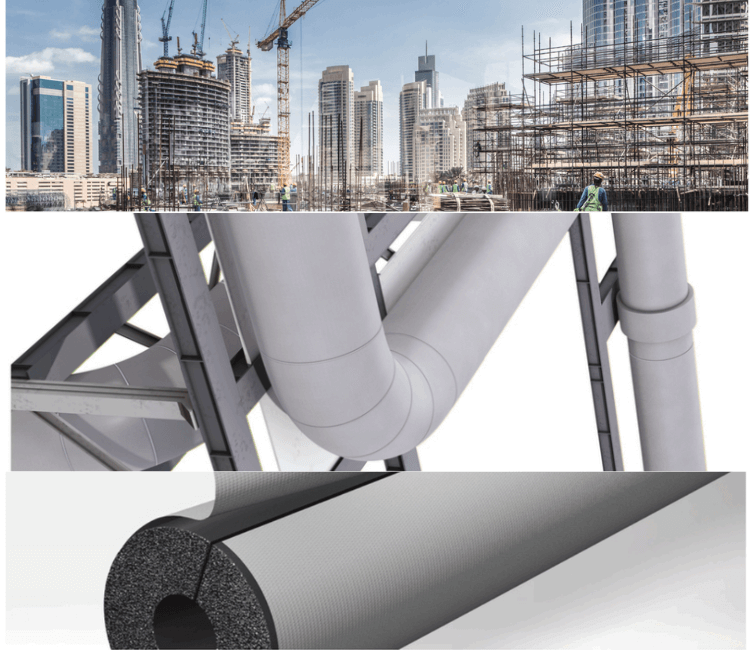

Close-up of Gitco Arma-Chek R with reinforced jacketing on insulated duct

Arma-Chek R: Flexible Non-Metallic Industrial Covering

Arma-Chek R: A highly flexible non-metallic covering system engineered for industrial and offshore insulation, offering exceptional resistance to fire, UV, weathering, and mechanical impact. Available at Gitco-sa.com (authorized Armacell distributor in Saudi Arabia & Bahrain).

Category: Tag:

Description

ArmaClad: Arma-Chek R is a cutting-edge, flexible non-metallic covering system specifically developed to provide superior protection for elastomeric and other insulation materials in the demanding environments of offshore and industrial applications. This innovative covering offers outstanding resistance to a wide array of challenges, including fire, UV radiation, weathering, and mechanical damage, ensuring the long-term integrity and performance of your insulation systems. Gitco-sa.com is a trusted authorized distributor of Armacell’s ArmaClad: Arma-Chek R in Saudi Arabia and Bahrain.

Designed for robust performance, Arma-Chek R boasts a comprehensive list of certifications for fire performance, including B-s3, d0 (EN 13501-1), less than 25 flame spread index (ASTM E84), and compliance with IMO 2010 FTP Code Parts 2 and 5 for surface flammability, smoke generation, and toxicity. Its excellent resistance to ozone and its hydrophobic properties contribute to its longevity in harsh outdoor conditions. Furthermore, Arma-Chek R exhibits very low leachable chlorides and ammonia ions, making it an excellent choice for mitigating corrosion under insulation (CUI). When integrated into a system, it can also provide significant acoustic insertion loss, meeting standards like ISO 15665 Classes A to C and Shell DEP 31.46.00.31-Gen Class D.

Key Features of Arma-Chek R:

  • Flexible Non-Metallic Design: Easy to install and adaptable to various shapes.
  • Superior Fire Performance: B-s3, d0, <25 Flame Spread, IMO and NF P 92-507 compliant.
  • Excellent UV and Weather Resistance: Designed for demanding outdoor and industrial environments.
  • High Mechanical Resistance: Exceptional tensile strength, elongation, tear strength, bursting strength, and puncture resistance.
  • Corrosion Mitigation: Low leachable chlorides and ammonia ions reduce CUI risk.
  • Acoustic Benefits: Contributes to system acoustic insertion loss.
  • Wide Service Temperature Range: Effective from -50°C (-58°F) to 100°C (212°F).
  • Excellent Ozone Resistance: Ensures durability in challenging atmospheric conditions.
  • Fungal Growth Resistant: Maintains hygiene and performance.

Product Variations of Arma-Chek R:

Arma-Chek R is typically available in roll format. While specific dimensions (width, length, thickness) are not fully detailed in the provided text beyond density, common variations would include:

  • Standard Roll Widths: To suit various pipe diameters and equipment sizes.
  • Standard Roll Lengths: For efficient application in large-scale projects.
  • Thickness: The mechanical properties reference a 2mm material, suggesting different thicknesses may be available to meet varying protection needs.

For optimal adhesion and sealing, Armaflex Adhesive 520, Adhesive HT625, or Ultima 700 should be used, along with Arma-Chek Mastic for joints and seams. Please contact Gitco-sa.com for detailed information on available sizes, thicknesses, and application guidelines for Arma-Chek R in Saudi Arabia and Bahrain to ensure the best solution for your industrial or offshore insulation needs.

Applications of Arma-Chek R:

  • Protective covering for insulation in offshore oil and gas facilities
  • Cladding for industrial process piping, vessels, and equipment
  • Insulation protection in petrochemical plants and refineries
  • Applications requiring high resistance to fire and harsh weather
  • Acoustic insulation systems where a robust outer jacket is needed
  • Thermal insulation systems in challenging industrial environments

Frequently asked questions about “Arma-Chek R”:

  1. What is Arma-Chek R?
    Arma-Chek R is a flexible, non-metallic, rubber-based covering system from Armacell, specifically designed to protect insulation in demanding industrial and offshore environments.
  2. What is the primary function of Arma-Chek R?
    Its main purpose is to provide robust mechanical protection, excellent weather resistance, and reduce the risk of corrosion under insulation (CUI) for various insulation materials.
  3. What types of environments is Arma-Chek R especially developed for?
    It is specifically engineered for harsh conditions found in offshore (oil and gas), heavy industry, chemical, and petrochemical plants.
  4. What material is Arma-Chek R made from?
    It’s a flexible polymer-based rubber, formulated with Chlorosulphonated Polyethylene (CSPE or CSM).
  5. Is Arma-Chek R resistant to UV radiation?
    Yes, it boasts exceptional resistance to UV attack, making it highly suitable for outdoor applications.
  6. Does Arma-Chek R offer resistance to salt water and chemicals?
    Yes, it is highly resistant to salt water and a wide range of chemicals common in industrial settings.
  7. Does Arma-Chek R help prevent Corrosion Under Insulation (CUI)?
    Yes, it is designed to significantly reduce the risk of CUI by preventing moisture ingress and being non-corrosive itself.
  8. What is the temperature range for Arma-Chek R?
    The service temperature range is typically from -50°C to +100°C.
  9. What is the fire performance rating of Arma-Chek R?
    It is classified as Euroclass B-s3,d0 and is IMO certified (meeting parts 2 and 5 of the IMO 2010 FTP Code) for marine applications, indicating very limited contribution to fire, low smoke production, and no flaming droplets.
  10. Does Arma-Chek R have any acoustic properties?
    Yes, when used as part of a system, Arma-Chek R provides combined acoustic barrier performance, complying with ISO 15665 Classes A to C and Shell DEP 31.46.00.31-Gen. Class D.
  11. Is Arma-Chek R flexible and mechanically resistant?
    Yes, it is highly flexible and offers very good resistance to mechanical impact, including puncture and tear resistance.
  12. What are the typical dimensions that Arma-Chek R is available in?
    It’s typically available in sheets on rolls, with thicknesses of 1 mm and 2 mm, and widths of 700 mm and 1,400 mm.
  13. How is Arma-Chek R installed?
    Installation involves using recommended Armacell adhesives (like ArmaFlex 520 or HT625) for the underlying insulation and seams, and sealing all joints and overlaps with Arma-Chek Mastic or special tapes.
  14. Is a special mastic or tape needed for Arma-Chek R installation?
    Yes, Arma-Chek Mastic (grey) is specifically used for sealing joints and seams to ensure system integrity.
  15. Can Arma-Chek R be used with various types of insulation materials?
    Yes, it is a flexible covering system for elastomeric (like ArmaFlex) and other insulation material types.
  16. Does Arma-Chek R have a built-in water vapor barrier?
    Yes, it has a very high water vapor diffusion resistance factor (µ ≥ 50,000), acting as an effective vapor barrier.
  17. Is Arma-Chek R easy to clean and maintain?
    Yes, its durable surface allows for easy cleaning.
  18. What kind of projects commonly use Arma-Chek R?
    Projects in demanding industrial sectors such as oil and gas refineries, chemical processing plants, power generation, and shipbuilding frequently utilize Arma-Chek R.
  19. Where can one find detailed technical specifications and brochures for Arma-Chek R?
    Detailed technical datasheets and product brochures are available on the Armacell website (armacell.com) and likely on the gitco-sa.com product page.
  20. Why should engineers and specifiers choose Arma-Chek R for their projects?
    Arma-Chek R offers a robust, non-metallic, and long-lasting solution for protecting insulation in aggressive environments, reducing maintenance costs, mitigating CUI, and enhancing safety with its fire and acoustic properties.

Choose Arma-Chek R from Gitco-sa.com, your authorized Armacell distributor in Saudi Arabia and Bahrain, for a flexible, high-performance non-metallic covering that provides unparalleled protection for your industrial and offshore insulation systems.



Reviews

There are no reviews yet.

Be the first to review “Arma-Chek R: Flexible Non-Metallic Industrial Covering”

Your email address will not be published. Required fields are marked *

Property Value / Assessment Standard / Test method
Temperature range
Service temperature1
Min. °C Min. °F Max. °C Max. °F
-50 -58 100 212

Fire Performance and Approvals
Reaction to fire B-s3, d0 EN 13501-1, EN 13823, EN ISO 11925-2
Surface burning characteristics < 25 flame spread index ASTM E84
Surface flammability2 IMO Part 2 (smoke generation and toxicity)
IMO Part 5 (surface flammability)
M1		 IMO 2010 FTP Code, Part 2, IMO 2010 FTP Code, Part 5, NF P 92-507
Corrosion mitigation
Leachable (water-soluble) chlorides4 ≤ 100 ppm (mg/kg or µg/g) EN 13468, ASTM C8715
Leachable (water-soluble) ammonia ions4 ≤ 100 ppm (mg/kg or µg/g) EN 13468, ASTM C8715
Physical attributes
Density 1,650 to 1,750 kg/m³ (103.00 to 109.25 lb/ft³) ISO 845, ASTM D1622
Mechanical properties
Tensile strength ≥ 4.5 MPa (≥ 653 psi) [MD] ISO 376
Elongation ≥ 200% [MD/CD] ISO 37
Tear strength ≥ 7.0 N/mm (≥ 40 lbf/in) [MD/CD] ISO 34-17
Bursting strength4,8 582.72 N / 131 lbf
Section 18.2 of the test standard
Result for 2mm material only.		 ASTM D751
Puncture resistance4 104.44 N / 23.48 lbf
Result for 2mm material only.		 ASTM D751
Hydrostatic pressure of joints4 No leak at 6.89 bar [70.4 m] (100 psi) ASTM D5385
Resistance to mechanical impact Good
Acoustic performance
System acoustic insertion loss9 When used as part of a system Arma-Chek R complies to ISO 15665 Classes A to C and Shell DEP 31.46.00.31-Gen Class D. ISO 15665, ISO 374110
Weather and UV resistance
UV resistance11 Excellent EN ISO 4892-2
Weather resistance Excellent [Allunga Exposure Laboratory test]
Resistance to ozone12 Excellent DIN 53509-1
Health and environment
Fungal growth4 No growth ASTM C1338
Other technical features
Additional remarks When installation of Arma-Chek R covering is conducted under ambient temperatures that differ from the final site conditions, or where ambient temperatures are expected to fluctuate, slight wrinkling of the installed Arma-Chek R covering may be expected. Caused by the natural contraction and expansion of the the underlying Armaflex insulation material, this wrinkling is solely aesthetic and has no effect the technical performance or integrity of the installed insulation system. Please consult Technical Services for additional guidance.
Adhesion and sealing Armaflex Adhesive 520, Adhesive HT625, or Ultima 700 shall be used for reliable adhesion. Minimum overlap should be ensured. Arma-Chek Mastic shall be used for sealing of joints and seams in accordance with our application manual.
Application conditions13,14 Application temperature: +5°C to +35°C (+41°F to +95°F)
Max. relative humidity: 80%
Shelf life15 Maximum of 3 years.
Storage Material shall be stored indoors, in clean and dry conditions, away from direct sunlight and in no direct contact with ground.

1 Service temperature determined based on thermal ageing behaviour.

2 The product satisfies the criteria of surface flammability (Part 5) for bulkheads, ceilings and linings as required by IMO 2010 FTP Code for insulation of pipe fittings for cold service systems. Further to this mandatory requirement the product satisfies the criteria of surface flammability (Part 5) and smoke generation and toxicity (Part 2) for floor coverings and primary deck coverings.

3 Water vapour diffusion resistance factor is based on actual net thickness.

4 Based on single test results. Can be used for information / reference only.

5 Specimen prepared according to EN 13486: neither cut, ground nor blended. Test temperature +100°C, leaching time 0.5 hours as specified in the standard for product maximum service temperature.

6 Type 2 sample.

7 Minimum value in Machine Direction (MD) and in Cross Direction (CD). Method B, procedure (b), angle test piece with a nick.

8 Result for 2mm material only.

9 For further information, please contact our Customer Service.

10 Equivalent method to ASTM E1222.

11 1000h cracking, no visible discoloration, 3000 / 5000h cracking under microscope, slight discoloration.

12 Tested at 48h / 25 ± 5 ppm / 20 ± 2 % elongation / no crack.

13 Application temperature refers to the ambient temperature during installation and the surface temperature of the substrate (e.g. ArmaClad Arma-Chek R covering) to which the product is installed.

14 For environmental conditions outside the given range, please contact Technical Services.

15 Shelf life (maximum storage time) is limited to ensure that only currently manufactured products are installed on projects. This limitation is restricted solely to storage of the product and does not affect the lifetime of product after it has been installed.
