Description

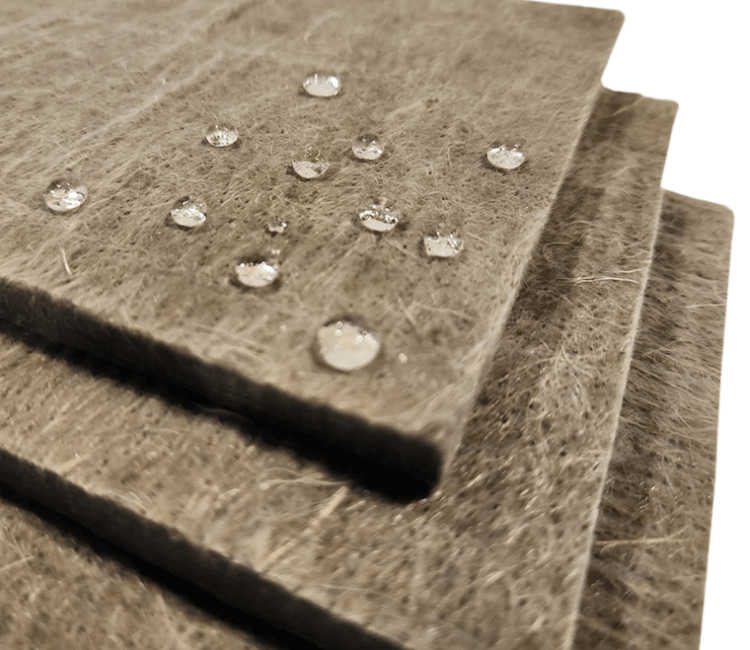

ArmaGel HT is a high-performance, flexible aerogel insulation blanket specifically engineered for elevated temperature applications, with a maximum service temperature of 650°C (1200°F). This advanced material surpasses traditional insulation, offering up to five times better thermal performance, making it an ideal choice for energy-intensive industries. ArmaGel HT is compliant with ASTM C1728, Type III, Grade 1A, ensuring adherence to stringent quality standards. Gitco-sa.com is a trusted authorized distributor of Armacell products, including ArmaGel HT, in Saudi Arabia and Bahrain.

The flexibility of ArmaGel HT allows for easy handling and installation, even around complex geometries. Its exceptional thermal conductivity minimizes heat loss, leading to significant energy savings. Furthermore, ArmaGel HT helps mitigate the risk of corrosion under insulation (CUI), ensuring the longevity and safety of insulated equipment. This aerogel blanket is hydrophobic, exhibits low water vapor sorption, and is non-corrosive to steel. It also boasts a Reaction to Fire classification of B-s1,d0.

Key Features of ArmaGel HT:

• High Temperature Application: Designed for continuous use up to 650°C (1200°F).
• Superior Thermal Performance: Up to five times better than competing insulation materials.
• ASTM C1728 Compliant: Meets stringent industry specifications.
• Flexible and Easy to Install: Adapts to complex shapes and surfaces.
• Mitigates CUI Risk: Helps prevent corrosion under insulation.
• Reaction to Fire B-s1,d0: Offers excellent fire safety properties.
• Hydrophobic: Repels water and resists moisture absorption.
• Low Water Vapor Sorption: Maintains thermal performance in humid environments.
• High Compressive Strength: ≥ 20.7 kPa at 10% compression.
• Fungal Growth Resistant: Inhibits the growth of mold and mildew.

Product Variations of ArmaGel HT:

ArmaGel HT is available in flexible blanket form with the following thickness options:

• 5 mm
• 10 mm
• 15 mm
• 20 mm

The material is supplied in standard roll widths. Please contact Gitco-sa.com for specific roll dimensions and availability of ArmaGel HT in Saudi Arabia and Bahrain to meet your project’s specific thermal and mechanical requirements. For operating temperatures above 400°C (752°F), a metallic foil barrier may be required; please consult with Gitco’s technical services for specific guidance.

Applications of ArmaGel HT:

• High-Temperature Industrial Piping and Equipment
• Energy Sector (power plants, refineries)
• Chemical Processing Facilities
• Thermal Insulation for turbines, exhaust systems, and other high-temperature equipment
• Acoustic Insulation in high-temperature environments

ArmaGel HT – Frequently Asked Questions :

1. What is ArmaGel HT?
   ArmaGel HT is a flexible aerogel insulation blanket designed for high-temperature applications, offering superior thermal performance compared to traditional insulation.
2. What is the maximum service temperature of ArmaGel HT?
   ArmaGel HT can withstand continuous operating temperatures up to 650°C (1200°F).
3. What is the thermal conductivity of ArmaGel HT?
   Its declared thermal conductivity (λd) at 24°C (75°F) is ≤ 0.021 W/(m·K) [0.14 Btu·in/(h·ft²·°F)], increasing slightly with temperature.
4. Is ArmaGel HT hydrophobic?
   Yes, ArmaGel HT is hydrophobic, meaning it repels liquid water.
5. Does ArmaGel HT help prevent corrosion under insulation (CUI)?
   Yes, its hydrophobic properties help to mitigate the risk of CUI.
6. What is the fire performance rating of ArmaGel HT?
   ArmaGel HT is non-combustible and achieves a reaction to fire classification of A2-s1,d0 according to EN 13501-1. It also has a surface burning characteristic of ≤ 5 flame spread index and ≤ 10 smoke development according to ASTM E84.
7. In what thicknesses is ArmaGel HT available?
   It is available in sheets with thicknesses of 5 mm, 10 mm, 15 mm, and 20 mm.
8. Is ArmaGel HT easy to install?
   Yes, it is a flexible blanket that can be easily cut and conformed to various shapes.
9. Is ArmaGel HT lightweight?
   Yes, its nominal density is around 180 kg/m³ (11 lb/ft³), making it lighter than traditional insulation.
10. What are the typical applications for ArmaGel HT? It is used for insulating pipes, vessels, and ducts in high-temperature industrial applications, including oil & gas and process equipment.
11. Does ArmaGel HT offer acoustic insulation properties?
    Yes, it provides excellent acoustic performance due to its sound absorption properties.
12. Is ArmaGel HT safe to handle?
    Yes, it has a neutral health aspect and features dust control technology.
13. What is the shelf life of ArmaGel HT?
    The maximum shelf life is typically up to 3 years when stored correctly.
14. Is ArmaGel HT suitable for multi-layer applications?
    Yes, it can be used in multi-layer systems, including with ArmaSound Industrial Systems for enhanced acoustic insulation.
15. Does ArmaGel HT pass corrosiveness tests for steel?
    Yes, it passes corrosiveness tests according to ASTM C1617 and stress corrosion cracking tests.
16. What are the benefits of using ArmaGel HT?
    Benefits include superior thermal performance, reduced thickness and weight, CUI mitigation, non-combustibility, ease of installation, and acoustic benefits.
17. Is ArmaGel HT water-resistant?
    Yes, it is hydrophobic and has low water absorption.
18. Does ArmaGel HT comply with industry standards?
    Yes, it complies with ASTM C1728, Type III, Grade 1A, and meets IOGP S-738 (JIP33) requirements.
19. Can ArmaGel HT contribute to space and weight savings?
    Yes, its thin profile can lead to significant savings in insulation thickness and weight.
20. Why should I choose ArmaGel HT for my high-temperature insulation needs?
    ArmaGel HT offers a superior and reliable solution for high-temperature insulation with its exceptional thermal performance, safety features, and ease of use.

For unparalleled thermal performance and safety in high-temperature industrial applications, choose ArmaGel HT from Gitco-sa.com, your authorized Armacell distributor in Saudi Arabia and Bahrain.
