Description

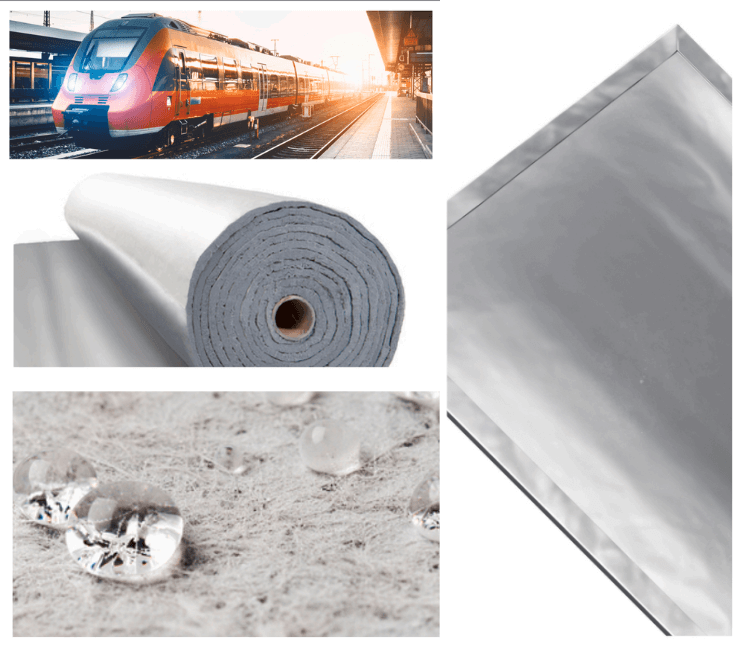

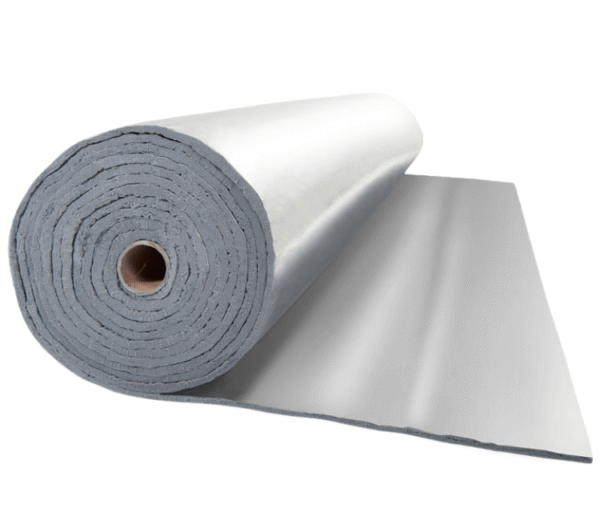

ArmaGel Rail is a specialized double-sided laminated flexible aerogel insulation blanket developed for the unique demands of rail applications. This lightweight yet highly effective insulation material is designed to maintain comfortable ambient temperatures inside trains across all operating conditions. Its double-sided lamination enhances its durability and handling properties. ArmaGel Rail is suitable for use in multi-layer applications with other materials to achieve comprehensive insulation solutions. Gitco-sa.com is a trusted authorized distributor of Armacell products, including ArmaGel Rail, in Saudi Arabia and Bahrain.

The primary function of ArmaGel Rail is to provide efficient thermal insulation, ensuring passenger comfort and reducing energy consumption for climate control in railway vehicles. Its low thermal conductivity minimizes heat transfer, contributing to a more stable and comfortable interior environment. The material is also hydrophobic, resisting water absorption, which is crucial in the often demanding conditions of railway operations.

Key Features of ArmaGel Rail :

• Specifically for Rail Applications: Engineered to meet the needs of the railway industry.
• Double-Sided Lamination: Enhances durability and ease of handling.
• Lightweight: Reduces overall weight in railcar construction.
• Excellent Thermal Conductivity: Minimizes heat transfer (λd ≤ 0.021 W/(m·K) at 24°C).
• Hydrophobic: Resists water absorption (maximum 8%).
• Suitable for Multi-Layer Applications: Can be combined with other materials for optimized performance.
• Contributes to Comfortable Ambient Temperatures: Ensures passenger comfort in all conditions.

Product Variations of ArmaGel Rail :

ArmaGel Rail is available as a double-sided laminated flexible aerogel blanket. While the provided data doesn’t specify exact thicknesses and roll dimensions, variations typically include:

• Different Thicknesses: To meet specific thermal insulation requirements for various railcar components.
• Standard Roll Widths and Lengths: Designed for efficient application in railway vehicle construction.

Please contact Gitco-sa.com for detailed information on available thicknesses, roll sizes, and specific product codes for ArmaGel Rail in Saudi Arabia and Bahrain to suit your specific rail application needs.

Applications of ArmaGel Rail :

• Thermal insulation for railcar walls, roofs, and floors
• Acoustic insulation component in railway vehicles
• Lightweighting solutions in rail construction
• OEM applications in the transportation sector
• Structural insulation within railcar assemblies

ArmaGel Rail – Frequently Asked Questions :

1. What is ArmaGel Rail?
   ArmaGel Rail is a double-sided laminated flexible aerogel insulation blanket specifically designed for railway applications.
2. What are the key features of ArmaGel Rail?
   Key features include its aerogel technology, double-sided aluminum foil lamination, thin profile, lightweight nature, and suitability for thermal and acoustic insulation.
3. What are the primary applications of ArmaGel Rail?
   It is used for thermal insulation in HVAC systems, walls, ceilings, floors, and doors in railway vehicles, aiming to maintain comfortable ambient temperatures. It also offers acoustic benefits.
4. What is the service temperature range of ArmaGel Rail?
   The maximum service temperature for ArmaGel Rail is +110°C (+230°F). For low-temperature applications, consult Armacell Technical Service.
5. What is the thermal conductivity of ArmaGel Rail?
   Its declared thermal conductivity (λd) at 24°C (75°F) is ≤ 0.021 W/(m·K) [≤ 0.14 Btu·in/(h·ft²·°F)].
6. Does ArmaGel Rail have a built-in vapor barrier?
   Yes, ArmaGel Rail features an integrated zero-perm vapor barrier due to its aluminum foil lamination.
7. Is ArmaGel Rail hydrophobic?
   The maximum water absorption is 8% according to ASTM C1763.
8. In what thicknesses is ArmaGel Rail available?
   It is available in thicknesses of 5 mm, 10 mm, 15 mm, and 20 mm.
9. Is ArmaGel Rail lightweight?
   Yes, its nominal density ranges from 160 to 240 kg/m³ (10 to 15 lb/ft³).
10. What are the fire performance ratings of ArmaGel Rail?
    ArmaGel Rail is approved in accordance with EN45545-02 HL3 (R1 / R7 / R17), a key standard for railway applications regarding fire safety.
11. Does ArmaGel Rail offer acoustic insulation properties?
    Yes, it offers improved sound absorption properties for enhanced comfort in rail vehicles.
12. Is ArmaGel Rail easy to install?
    Yes, being a flexible blanket, it can be easily cut and applied.
13. Is ArmaGel Rail suitable for multi-layer applications? Yes, it is suitable for use in multi-layer applications with other products.
14. What is the shelf life of ArmaGel Rail? The maximum shelf life is 3 years when stored indoors in clean and dry conditions away from direct sunlight.
15. What are the benefits of using ArmaGel Rail in railway applications?
    Benefits include excellent thermal insulation with low thickness, lightweight design, compliance with railway fire safety standards, improved sound absorption, and ease of installation.
16. What is the color of ArmaGel Rail?
    The color of ArmaGel Rail is silver due to the double-sided aluminum foil lamination.
17. What is the length of ArmaGel Rail rolls?
    The length per roll is typically 40 meters for standard jumbo rolls (for 10 mm thickness), but this can vary depending on the thickness.
18. Does ArmaGel Rail contribute to weight reduction in rail vehicles?
    Yes, its lightweight nature helps in reducing the overall weight of insulated systems, which is crucial in transportation.
19. Why should I choose ArmaGel Rail for my railway insulation needs?
    ArmaGel Rail offers a specialized insulation solution tailored for the demanding requirements of the railway industry, providing excellent thermal and acoustic performance while meeting stringent fire safety standards and minimizing weight and space.

For a lightweight and high-performance insulation solution specifically designed for rail applications, choose ArmaGel Rail from Gitco-sa.com, your authorized Armacell distributor in Saudi Arabia and Bahrain.
