Description

ArmaProtect CB (Coated Board) is a state-of-the-art ablative coated board system meticulously engineered to maintain the critical fire resistance performance of diverse penetrations (including pipes, cables, and mixed services) through walls and floors. This comprehensive system comprises a high-density mineral wool board treated with an ablative firestop coating, complemented by an ablative firestop filler mastic. In a fire event, the ablative coating reacts to heat, forming a protective char layer that insulates and prevents the passage of flames and smoke, thereby preserving compartmentation and significantly enhancing building safety. Gitco-sa.com, as the authorized Armacell distributor for Saudi Arabia and Bahrain, proudly supplies this essential fire safety product across the region, catering to the evolving construction and infrastructure needs in major cities like Riyadh, Jeddah, Dammam, Manama, and beyond.

A significant advantage of the ArmaProtect CB system is that all its components – the coated board, ablative firestop coating (ArmaProtect ABLC), and ablative firestop filler mastic (ArmaProtect ABLF) – are entirely halogen- and solvent-free. This ensures a healthier indoor environment and safer application. The system is designed for robust performance across a broad operating temperature range of -40°C to +70°C, with an optimal processing temperature between 5°C and 25°C. It carries a Class E Reaction to Fire classification (EN 13501-1) and is certified for use in conditions exposed to weathering (Type X, EOTA TR 024), highlighting its durability in diverse environments. ArmaProtect CB provides impressive fire resistance for structural elements, achieving up to EI 240 for concrete walls, aerated concrete walls, masonry walls, and concrete floors (EN 13501-2). Furthermore, it boasts a UL-approved system with an FT-Rating of up to 3 hours (ANSI/UL 1479 / ASTM E814). The coating and mastic have low VOC content (< 50 g/l), meeting Green Seal Standard GS-11, and the system emits no dangerous substances. The components have a substantial shelf life of at least 18 months when stored properly (cool, dry, protected from frost), providing long-term reliability for your firestopping needs.

Key Features of ArmaProtect CB:

• Ablative Coated Board System: Forms a protective char layer to resist fire and smoke.
• Comprehensive Solution: Includes mineral wool board, coating, and filler mastic.
• Halogen- & Solvent-Free: Ensures healthier indoor air quality and safer application.
• High Fire Resistance: Up to EI 240 for concrete structures, UL 3-hour FT-Rating.
• Versatile Application: Ideal for mixed fire seals in various wall and floor types.
• Wide Operating Temperature: Effective from -40°C to +70°C.
• Weather-Exposed Use (Type X): Suitable for applications with exposure to weathering.
• Low VOC Content: Environmentally conscious and healthier for occupants.
• No Dangerous Substances: Ensures health and safety compliance.

Product Variations of ArmaProtect CB:

ArmaProtect CB primarily refers to the complete system, which is standardized by its composition of mineral wool board, ArmaProtect ABLC Firestop coating, and ArmaProtect ABLF Firestop filler mastic. Variations would typically involve the thickness of the mineral wool board to achieve specific fire ratings or suit different opening sizes. While the core “CB” technology and its components remain consistent, the dimensions of the boards can vary to accommodate diverse penetration sizes and configurations. For specific available board dimensions, thickness options, detailed fire rating data for various pipe/cable materials and wall/floor constructions, and comprehensive installation guidelines for your projects in Saudi Arabia or Bahrain, please contact Gitco-sa.com.

Know more about”ArmaProtect CB”:

1. What is ArmaProtect CB?
   ArmaProtect CB is an ablative coated board system from Armacell. It consists of a mineral wool board that is pre-coated with ArmaProtect ABLC (ablative firestop coating) and used in conjunction with ArmaProtect ABLF (ablative firestop filler mastic) to seal fire penetrations.
2. What are the primary functions of ArmaProtect CB?
   Its main functions are to:
   • Maintain the fire resistance performance of fire-rated walls and floors.
   • Seal large and complex fire penetrations, including mixed services.
   • Prevent the spread of fire, smoke, and toxic gases through openings.
3. How does ArmaProtect CB work in a fire?
   The ablative coating on the board (ArmaProtect ABLC) and the filler mastic (ArmaProtect ABLF) react when exposed to heat. The ablative action means the material undergoes a chemical process, forming a protective char layer that dissipates heat and reinforces the seal, preventing fire and smoke passage.

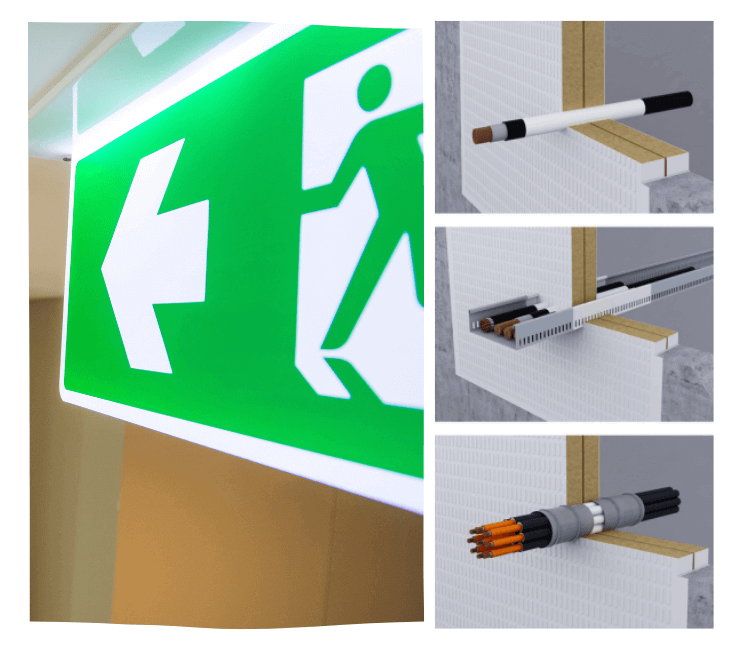

4. What types of penetrations can ArmaProtect CB be used for?
   It is highly versatile for sealing:
   • Blank openings (empty holes).
   • Mixed and multiple services.
   • Cables, cable bundles, and cable trays.
   • Conduit and conduit bundles.
   • Non-combustible pipes (e.g., steel, copper).
   • Combustible pipes (e.g., PVC, PE, PP) – up to specific diameters.
   • It is suitable for medium to large firestop penetrations.
5. What kind of fire resistance ratings can ArmaProtect CB achieve?
   When installed as part of a tested system, ArmaProtect CB can achieve high fire resistance ratings:
   • For concrete walls, aerated concrete walls, masonry walls, and concrete floors: up to EI 240 (240 minutes of integrity and insulation).
   • UL approved systems can achieve an FT-Rating of up to 3 hours.
6. What is the material composition of ArmaProtect CB?
   It is a mineral wool board coated with ArmaProtect ABLC firestop coating. The system also includes ArmaProtect ABLF firestop filler mastic for sealing gaps and joints.
7. What is the color of ArmaProtect CB?
   The coated firestop board is typically white.
8. Are ArmaProtect CB components halogen- and solvent-free?
   Yes, the entire ArmaProtect CB system, including the coated board, ablative firestop coating, and ablative firestop filler mastic, is halogen- and solvent-free, contributing to a healthier environment.

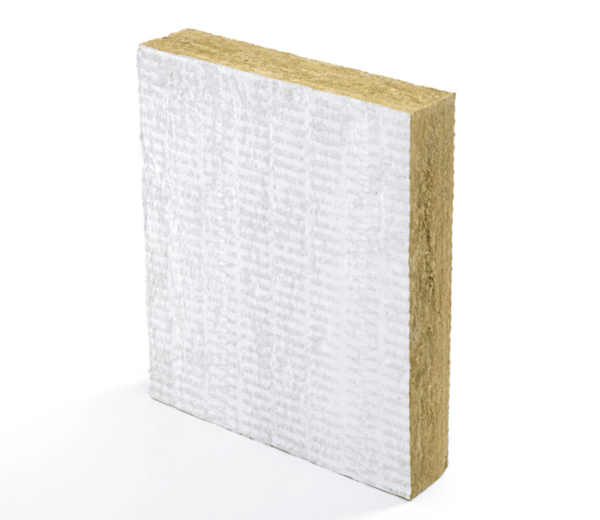

9. What are the typical dimensions of ArmaProtect CB boards?
   The coated boards are typically available in dimensions of 1000 mm x 600 mm x 60 mm. They can be supplied as one-side or two-side coated boards.
10. What is the operating temperature range for ArmaProtect CB?
    The operating temperature range is typically from $-40\text{ °C}$ to $+70\text{ °C}$. The processing (installation) temperature is $5\text{ °C}$ to $25\text{ °C}$.
11. Is ArmaProtect CB resistant to environmental factors?
    Yes, in a cured state, the ablative firestop coating (ArmaProtect ABLC) and ablative firestop filler mastic (ArmaProtect ABLF) are resistant against humidity, frost-dew-change, and UV radiation. It has a Type X use category, indicating suitability for conditions exposed to weathering.
12. Does ArmaProtect CB emit dangerous substances?
    No, according to its technical data, there is no emission of dangerous substances, and its VOC (Volatile Organic Compounds) content is very low ($<50\text{ g/l}$).
13. What certifications and approvals does ArmaProtect CB hold?
    It is globally approved with European Technical Assessment (ETA), specifically ETA-22/0063 acc. EN 1366-3 (fire resistance tests for service installations – penetration seals), and complies with EN 13501-2 for fire resistance classification. It also has UL approved systems (ANSI/UL 1479 (ASTM E814)) with FT-Ratings up to 3 hours.
14. How is ArmaProtect CB installed?
    The coated boards are cut to fit the opening around the penetrations. They are then installed in the wall or floor, and the gaps between the boards, services, and the surrounding structure are sealed with the ArmaProtect ABLF firestop filler mastic. The surface is often finished with ArmaProtect ABLC coating. Detailed application videos and instructions are provided by Armacell.
15. What are the key benefits of using ArmaProtect CB?
    Benefits include:
    • High fire resistance performance for extended periods.
    • Versatility for mixed and large penetrations.
    • Weathering resistance (Type X).
    • Halogen- and solvent-free formulation.
    • Part of a comprehensive firestop system for reliability.
16. Is ArmaProtect CB intended for professional use only?
    Yes, firestop products like ArmaProtect CB are designated for professional use only to ensure correct installation and compliance with fire safety regulations.
17. What is the shelf life and storage for ArmaProtect CB and its components?
    The ArmaProtect ABLC firestop coating and ArmaProtect ABLF firestop filler mastic can be kept for at least 18 months if unopened and stored properly. The boards themselves are generally stable. All components should be stored in a cool, dry place ($5\text{ °C}$ to $25\text{ °C}$) and protected from frost.
18. Can ArmaProtect CB be used in combination with other Armacell passive fire protection products?
    Yes, it is a core component of Armacell’s comprehensive ArmaProtect portfolio, which includes firestop wraps, collars, sealants, and mortars, allowing for a “one-stop-shop” solution for various penetration sealing requirements.
19. Where can one purchase ArmaProtect CB in Bahrain and Saudi Arabia?
    Gitco-sa.com, as an authorized distributor and partner of Armacell in Saudi Arabia and Bahrain, would be a primary supplier for ArmaProtect CB. They would carry this product as part of Armacell’s extensive passive fire protection solutions.
20. Why choose a specialized supplier like Gitco-sa.com for ArmaProtect CB in Bahrain/Saudi Arabia?
    Choosing a specialist ensures access to genuine Armacell products with validated technical performance and compliance. Gitco-sa.com can provide critical technical expertise on product selection, precise installation methods for complex mixed penetrations, and ensure compliance with local fire safety codes and regulations, which are essential for ensuring the safety and integrity of buildings in the region.
