Description

ArmaProtect FW1 is an advanced, fabric-based firestop wrap engineered to deliver crucial passive fire protection by maintaining the fire resistance performance of various penetrations (such as pipes and cables) through walls and floors. This flexible wrap is constructed from a robust glass filament fabric composite, featuring an insulation layer forming a protective coating on both the inside and outside. In a fire event, this specialized coating reacts to heat, effectively sealing the penetration and preventing the passage of flames and smoke, thereby maintaining compartmentation. Gitco-sa.com, as the authorized Armacell distributor for Saudi Arabia and Bahrain, proudly supplies this essential fire safety product across the region, catering to the needs of construction and infrastructure projects in major cities like Riyadh, Jeddah, Dammam, and Manama.

ArmaProtect FW1 is designed for high reliability and operates within a broad temperature range of -40°C to 70°C, with an optimal processing temperature between 5°C and 25°C. It holds a Class E Reaction to Fire classification (EN 13501-1) and is certified for use in conditions exposed to weathering (Type X, EOTA TR 024), highlighting its durability in diverse environments. This firestop wrap provides impressive fire resistance, boasting a UL-approved system with an FT-Rating of up to 3 hours (ANSI/UL 1479 / ASTM E814), ensuring robust protection against fire spread. Furthermore, ArmaProtect FW1 is free from dangerous substances, ensuring safety for installers and building occupants. It also offers the significant advantage of having no shelf life when stored correctly (cool, dry, protected from frost), guaranteeing long-term usability and reliability for ongoing and future passive fire protection requirements.

Key Features of ArmaProtect FW1:

• Flexible, Fabric-Based Wrap: Easily conforms to various pipe/cable shapes and sizes.
• Glass Filament Fabric Composite: Provides robust structural integrity.
• Insulation Layer Forming Coating: Reacts to heat to create an effective fire seal.
• High Fire Resistance: UL-approved system with an FT-Rating of up to 3 hours.
• Wide Operating Temperature: Effective from -40°C to 70°C.
• Weather-Exposed Use (Type X): Suitable for applications with exposure to weathering.
• No Dangerous Substances: Ensures health and safety compliance.
• No Shelf Life: Provides long-term viability when stored properly.

Product Variations of ArmaProtect FW1:

ArmaProtect FW1 primarily comes in various dimensions (e.g., widths and lengths) to accommodate different pipe/cable diameters and the specific thickness requirements for achieving desired fire ratings. While the core “FW1” fabric-based material and its composite coating remain consistent, the customizable nature of a wrap means installers can cut it to the precise length needed for each penetration. This flexibility makes it highly adaptable to unique site conditions and diverse pipe/cable configurations, ensuring precise firestopping. For specific dimensions, detailed fire rating data for various pipe/cable materials and wall/floor constructions, and comprehensive installation guidelines for your projects in Saudi Arabia or Bahrain, please contact Gitco-sa.com.

Know More about”ArmaProtect FW1″:

1. What is ArmaProtect FW1?
   ArmaProtect FW1 is a fabric-based firestop wrap from Armacell. It’s a flexible, intumescent material designed to help maintain the fire resistance performance of fire penetrations in walls and floors, particularly for pipes and cable bundles.
2. What are the primary functions of ArmaProtect FW1?
   Its main functions are to:
   • Seal fire penetrations around pipes and cables.
   • Prevent the spread of fire and smoke through these openings.
   • Maintain the integrity and insulation of fire-rated compartments.
3. How does ArmaProtect FW1 work in a fire?
   ArmaProtect FW1 contains an intumescent material that expands significantly when exposed to heat. This expansion forms a fire-resistant char that seals off the annular gap around penetrations, crushing combustible pipes or insulating non-combustible pipes, thereby preventing the passage of fire, smoke, and hot gases.
4. What types of penetrations can ArmaProtect FW1 be used for?
   It is versatile and suitable for:
   • Non-combustible pipes (e.g., steel, copper) up to $\varnothing \le 323.9\text{ mm}$ (with combustible insulation).
   • Composite pipes.
   • Conduits and conduit bundles.
   • Cable bundles.
   • Combustible pipes up to specific diameters (details vary per test).
5. What kind of fire resistance ratings can ArmaProtect FW1 achieve?
   When installed as part of a tested system, ArmaProtect FW1 can achieve high fire resistance ratings, typically up to EI 120 (120 minutes of integrity and insulation) and even up to EI 240 depending on the specific application, wall/floor type, and pipe configuration. It also holds UL-approved system FT-Ratings of up to 3 hours.
6. What is the material type of ArmaProtect FW1?
   It is a glass filament fabric composite with an insulation layer forming a coating on both the inside and outside.
7. What are the colors of ArmaProtect FW1?
   The product typically features a red color on the outside and anthracite (dark grey) on the inside.
8. What are the special features of ArmaProtect FW1?
   It is highlighted as being flexible and tear-resistant, which facilitates easier installation and handling.

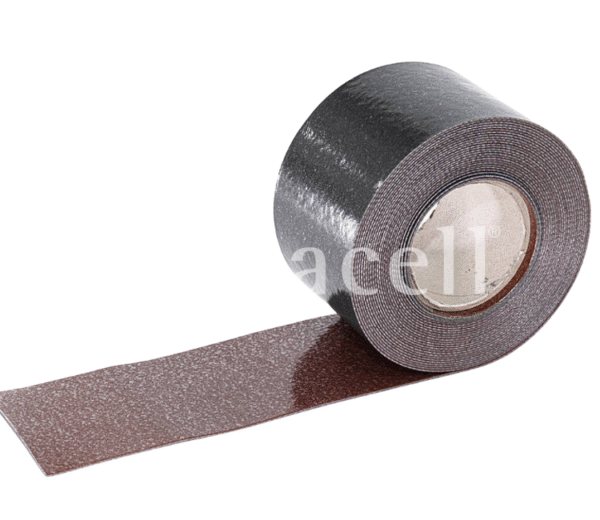

9. What are the typical dimensions of ArmaProtect FW1 rolls?
   A common product range is a firestop wrap roll with dimensions of $10\text{ m}\times 100\text{ mm}\times 1.5\text{ mm}$ in a cardboard box.
10. What is the operating temperature range for ArmaProtect FW1?
    The operating temperature range is typically from $-40\text{ °C}$ to $+70\text{ °C}$. The processing temperature (for installation) is $5\text{ °C}$ to $25\text{ °C}$.
11. Is ArmaProtect FW1 suitable for outdoor use or exposure to weathering?
    Yes, it is classified for use categories that include Type X (intended for use in conditions exposed to weathering) and Type Y1/Y2 (intended for use at temperatures below $0\text{ °C}$ with/without UV exposure, but no exposure to rain).
12. Does ArmaProtect FW1 emit dangerous substances?
    No, according to its technical data sheet, there is no emission of dangerous substances.
13. What certifications and approvals does ArmaProtect FW1 hold?
    It is globally approved and tested according to EN (European Technical Assessment – ETA) and UL (Underwriters Laboratories) test standards. This includes EN 13501-1 (reaction to fire – Class E), EN 1366-3 (fire resistance tests for service installations – penetration seals), and ANSI/UL 1479 (ASTM E814) for fire resistance ratings (FT-Rating).

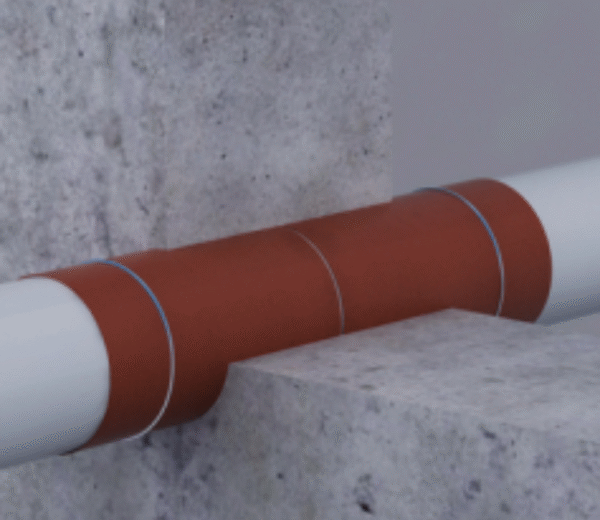

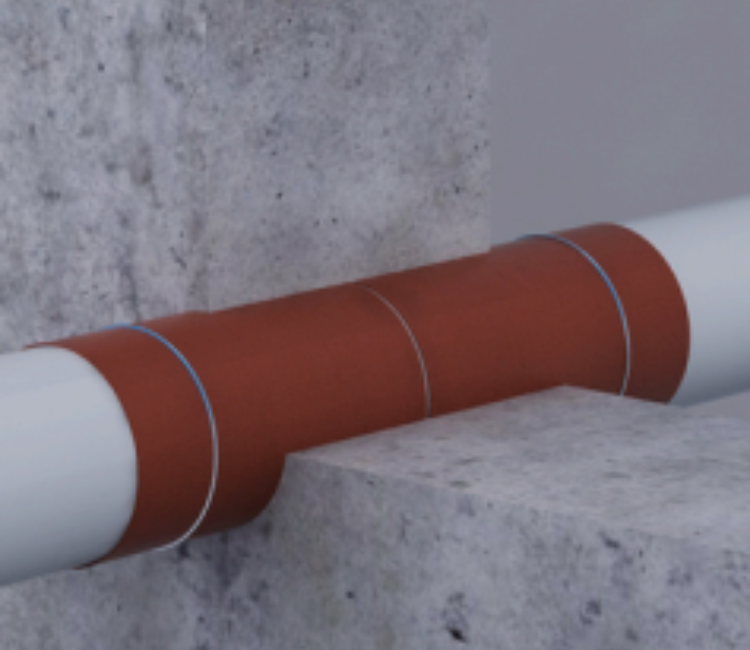

14. How is ArmaProtect FW1 installed?
    The flexible wrap is cut to the required length and wrapped around the pipe or cable bundle where it passes through the fire-rated wall or floor. The number of layers and overlap depend on the pipe/cable type, size, and required fire rating. It’s often secured with wire or clips, and the opening is typically sealed with a compatible firestop sealant or mortar.
15. What are the key benefits of using firestop wraps like ArmaProtect FW1?
    Benefits include:
    • Flexibility for irregular shapes and complex penetrations.
    • Cost-efficiency, as it can be cut to exact lengths, minimizing waste.
    • Ease of installation compared to rigid collars for certain applications.
    • Effective sealing of mixed penetrations (cables and pipes together).
16. Is ArmaProtect FW1 intended for professional use only?
    Yes, firestop products like ArmaProtect FW1 are designed for professional use only to ensure correct installation and compliance with stringent fire safety regulations.
17. What is the shelf life and storage for ArmaProtect FW1?
    There is no stated shelf life for ArmaProtect FW1, indicating its stability over time. It should be stored in a cool and dry place with an ambient temperature of $5\text{ °C}$ to $25\text{ °C}$ and protected from frost.
18. Can ArmaProtect FW1 be used in combination with other Armacell passive fire protection products?
    Yes, it is part of the comprehensive ArmaProtect portfolio, which includes firestop collars, sealants, boards, and mortars, allowing for a “one-stop-shop” solution for various penetration sealing requirements.
19. Where can one purchase ArmaProtect FW1 in Bahrain and Saudi Arabia?
    Gitco-sa.com, as an authorized distributor and partner of Armacell in Saudi Arabia and Bahrain, would be a primary supplier for ArmaProtect FW1. They would carry this product as part of Armacell’s extensive passive fire protection solutions.
20. Why choose a specialized supplier like Gitco-sa.com for ArmaProtect FW1 in Bahrain/Saudi Arabia?
    Choosing a specialist ensures access to genuine Armacell products with validated technical performance. Gitco-sa.com can provide critical technical expertise on product selection, precise installation methods, and compliance with local fire safety codes and regulations (e.g., UAE Fire & Life Safety Code of Practice), which are essential for ensuring the safety and integrity of buildings in the region.
