Description

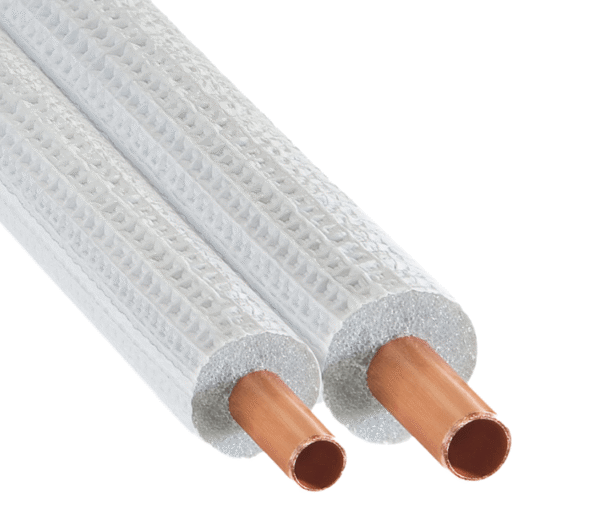

ArmaLight – Tubolit DuoSplit is a cost-effective and proven pre-insulated system solution designed for the efficient connection of indoor and outdoor air conditioning and refrigeration units in split, multi-split, and heat pump systems. This comprehensive system consists of high-quality, soft-annealed, seamlessly drawn refrigeration copper pipes (EN 12735-1) that are pre-insulated with original Tubolit closed-cell polyethylene foam. The system also features a durable, UV-resistant polyolefin-copolymer facing and matching accessories, ensuring a reliable and long-lasting installation. Gitco-sa.com is a trusted authorized distributor of Armacell’s ArmaLight – Tubolit DuoSplit in Saudi Arabia and Bahrain.

Tubolit DuoSplit is specifically engineered to minimize energy losses in residential and commercial applications. Its closed-cell insulation provides excellent thermal performance, while the UV-resistant facing ensures durability and protection against mechanical strain and environmental factors. This system is compatible with common refrigeration gases such as R-410A, R-407C, and R32, making it a versatile solution for various HVAC/R installations. The pre-insulated design simplifies and speeds up the installation process, reducing labor costs.

Key Features of Tubolit DuoSplit :

• Complete Pre-Insulated System: Includes copper pipes, insulation, UV-resistant facing, and accessories.
• Reliable Connection: Ensures efficient refrigerant flow between indoor and outdoor units.
• Energy Efficient: Minimizes thermal losses with Tubolit closed-cell insulation.
• UV Resistant Facing: Provides long-term protection against sun exposure.
• Durable and Mechanically Resistant: Withstands mechanical strain during and after installation.
• Easy and Quick Installation: Pre-insulated design saves time and labor.
• Compatible with Common Refrigerants: Suitable for R-410A, R-407C, and R32.
• Wide Service Temperature Range: Operates effectively from -50°C to +100°C.
• Excellent Reaction to Fire: B(L)-s1,d0 classification for the insulation tube.

Product Variations of Tubolit DuoSplit:

ArmaLight – Tubolit DuoSplit is available in various configurations based on the copper pipe dimensions to suit different system capacities and connection requirements. Variations include:

• Imperial Sizes:

  • 1/4″ copper pipes with varying wall thicknesses (0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm)
  • 3/8″ copper pipes with varying wall thicknesses (0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm)
  • 1/2″ copper pipes with varying wall thicknesses (0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm)
  • 5/8″ copper pipes with varying wall thicknesses (0.8 mm, 1.0 mm)
  • 3/4″ copper pipes with a wall thickness of 1.0 mm
  • 7/8″ copper pipes with a wall thickness of 1.0 mm

• Metric Sizes:

  • 6 mm copper pipes with varying wall thicknesses (0.8 mm, 1.0 mm)
  • 10 mm copper pipes with varying wall thicknesses (0.8 mm, 1.0 mm)
  • 12 mm copper pipes with varying wall thicknesses (0.8 mm, 1.0 mm)
  • 16 mm copper pipes with a wall thickness of 1.0 mm
  • 18 mm copper pipes with a wall thickness of 1.0 mm
  • 22 mm copper pipes with a wall thickness of 1.0 mm

Each size variation will have specific maximum operating pressure ratings. Please contact Gitco-sa.com for detailed information on available sizes, lengths, and matching accessories for ArmaLight – Tubolit DuoSplit in Saudi Arabia and Bahrain to meet your specific air conditioning and refrigeration system requirements.

Applications of Tubolit DuoSplit:

• Connecting the indoor and outdoor units of split air conditioning systems
• Connecting the indoor and outdoor units of multi-split air conditioning systems
• Connecting the indoor and outdoor units of heat pump systems
• Refrigeration line connections in residential and commercial buildings

Armacell Tubolit DuoSplit – Frequently Asked Questions

1. What is ArmaLight Tubolit DuoSplit / Tubolit DuoSplit?
   It is a reliable pre-insulated copper pipe system designed for connecting indoor and outdoor units of split and multi-split air conditioning and refrigeration systems, as well as heat pumps.
2. What are the main components of Tubolit DuoSplit?
   It consists of two high-quality, soft-annealed seamless copper pipes (compliant with EN 12735-1) that are pre-insulated with closed-cell Tubolit polyethylene foam and covered with a white, UV-resistant polyolefin copolymer coating.
3. What is the purpose of the pre-insulation?
   The insulation provides excellent protection against energy losses and condensation, ensuring efficient operation of the air conditioning system and preventing potential damage.
4. What is the temperature range for Tubolit DuoSplit?
   The service temperature range is typically from -50°C to +100°C.
5. What is the thermal conductivity of the insulation? The declared thermal conductivity (λd) of the Tubolit insulation at 0°C is ≤ 0.036 W/(m·K).
6. Does Tubolit DuoSplit offer protection against condensation? Yes, the closed-cell structure of the Tubolit insulation provides a high water vapor diffusion resistance factor (µ ≥ 5000), effectively preventing condensation.
7. What is the fire classification of Tubolit DuoSplit? It achieves a Euroclass BL-s1, d0, indicating very limited contribution to fire, very low smoke production, and no flaming droplets.
8. Is Tubolit DuoSplit UV-resistant?
   Yes, the white polyolefin copolymer coating offers very good UV resistance, making it suitable for outdoor installations.
9. What sizes of copper pipes are available in Tubolit DuoSplit?
   It is available in various combinations of copper pipe diameters, typically ranging from 1/4″ to 1/2″ (in imperial) or 6 mm to 12 mm (in metric), with different wall thicknesses.
10. What is the length of Tubolit DuoSplit coils?
    The standard coil length is usually 25 meters.
11. Is Tubolit DuoSplit easy to install?
    Yes, it is designed for easy and quick installation, and some versions feature a patented join-split adhesive technology for easy separation and joining of the pipes without special tools.
12. What refrigerants is Tubolit DuoSplit compatible with?
    It is suitable for use with common refrigerants such as R-410A, R-407C, and R32.
13. Are there accessories available for Tubolit DuoSplit?
    Yes, Armacell offers a complete range of matching accessories to facilitate professional and reliable installation.
14. Does the insulation remain uncut along its length?
    Yes, for optimal performance and to maintain the vapor barrier, the insulation should remain uncut along the complete applied length and glued to the pipe ends.
15. What is the maximum operating pressure for the copper pipes?
    The maximum operating pressure depends on the specific pipe dimensions (diameter and wall thickness) and can range from around 52 bar to over 220 bar.
16. Does Tubolit DuoSplit offer any environmental benefits?
    The insulation helps to reduce energy losses, contributing to energy efficiency and potentially lowering CO2 emissions. The packaging is also designed to be more sustainable and space-saving.
17. What are the storage recommendations for Tubolit DuoSplit?
    Store in a clean, dry place, protected from direct sunlight and mechanical damage.
18. Where can I find the technical datasheet for Tubolit DuoSplit?
    Detailed technical datasheets are available on the Armacell website and likely on the gitco-sa.com product page.
19. What is the difference between Tubolit Split and Tubolit DuoSplit?
    Tubolit Split typically refers to a single pre-insulated copper pipe, while Tubolit DuoSplit contains two pre-insulated copper pipes bonded together, for the flow and return lines of a split air conditioning system.
20. Why should I choose Tubolit DuoSplit for my air conditioning installation?
    Tubolit DuoSplit offers a reliable, durable, and easy-to-install solution with excellent thermal insulation, condensation control, UV resistance, and fire safety properties, ensuring the efficient and long-lasting performance of your air conditioning system.

Choose ArmaLight – Tubolit DuoSplit from Gitco-sa.com, your authorized Armacell distributor in Saudi Arabia and Bahrain, for a reliable, energy-efficient, and easy-to-install pre-insulated copper pipe system for your AC and refrigeration needs.
