Description

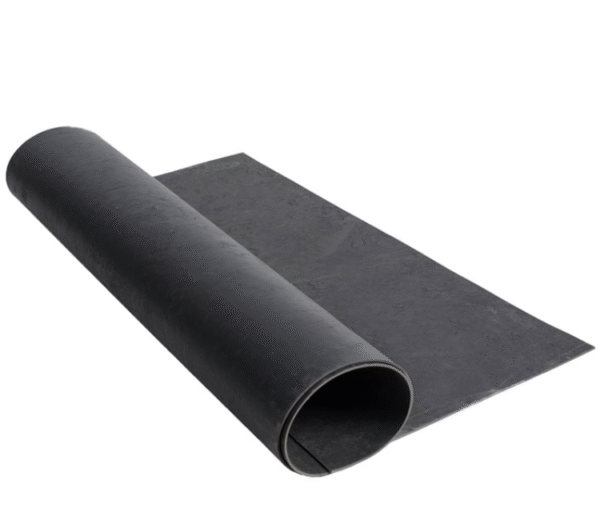

ArmaSound Barrier H is a cutting-edge, mass-loaded sound barrier crafted from a durable thermoplastic polymer compound, presenting as a robust vinyl sound barrier mat. It is meticulously engineered to deliver exceptional acoustic performance, particularly when integrated into systems with metal jacketing. This makes it an ideal solution for achieving a quieter environment in demanding energy and industrial sectors. Gitco-sa.com, as an authorized Armacell distributor in Saudi Arabia and Bahrain, proudly offers this specialized acoustic barrier. ArmaSound Barrier H is designed to reduce airborne sound transmission effectively, contributing significantly to noise control. It operates reliably across a wide service temperature range from -20°C (-48°F) to an intermittent maximum of 85°C (185°F), with a continuous operating temperature of +65°C. Its practical fire behavior is notable, as it is self-extinguishing with a low burn rate (flame progression < 100 mm/min, FMVSS 302), enhancing safety in critical applications. When used in conjunction with metal cladding and approved non-Armacell acoustic insulation, ArmaSound Barrier H complies with rigorous acoustic standards such as ISO 15665 Classes A, B, and C, and Shell DEP 31.46.00.31 – Gen Class D, affirming its high-performance capabilities in complex industrial acoustic systems.

Key Features of ArmaSound Barrier H:

• Engineered for Metal Jacketing Systems: Optimized for performance when combined with metal cladding.
• High-Performance Mass-Loaded: Effectively blocks and reduces airborne sound.
• Durable Material: Made from a robust vinyl thermoplastic polymer compound.
• Wide Service Temperature Range: Reliable performance from -20°C (-48°F) to 85°C (185°F) intermittent.
• Fire Safety: Self-extinguishing with a low burn rate.
• System Compliance: Meets stringent ISO 15665 and Shell DEP acoustic classes when installed as part of a system.
• Robust Mechanical Properties: Good tensile strength (≥ 1.8 MPa) and elongation (≥ 25%).

Product Variations of ArmaSound Barrier H :

ArmaSound Barrier H is available in various thicknesses, each offering a distinct mass per unit area to cater to different acoustic attenuation requirements:

• 2mm Thickness: Mass per unit area of approximately 4.8 to 5.50 kg/m² (0.98 to 1.13 lb/ft²).
• 3mm Thickness: Mass per unit area of approximately 7.2 to 8.25 kg/m² (1.47 to 1.69 lb/ft²).
• 4mm Thickness: Mass per unit area of approximately 9.7 to 11.0 kg/m² (1.99 to 2.25 lb/ft²). These variations allow for flexibility in design and application, enabling engineers and specifiers to choose the ideal thickness based on the specific noise reduction goals for their energy or industrial projects. For precise details on available dimensions and for guidance on system integration, please contact Gitco-sa.com.

Know more about ArmaSound Barrier H :

1. What is ArmaSound Barrier H?
   ArmaSound Barrier H is a high-performance, mass-loaded vinyl (MLV) sound barrier mat manufactured by Armacell. It’s a thermoplastic polymer compound engineered specifically for applications with metal jacketing to reduce airborne sound transmission.
2. What are the primary functions of ArmaSound Barrier H?
   Its main functions are to effectively reduce the transmission of airborne sound and to enhance the insertion loss performance of pipe insulation systems, particularly when used in conjunction with metal cladding.
3. What color is ArmaSound Barrier H?
   ArmaSound Barrier H is black in color.
4. What kind of noise does the ArmaSound Barrier H help reduce?
   It is excellent at reducing airborne sound, such as noise from industrial machinery, process pipework, and other sources in demanding environments.
5. What is the fire performance of ArmaSound Barrier H?
   ArmaSound Barrier H demonstrates good fire performance, being self-extinguishing with a burn rate (flame progression) of < 100 mm/min (tested according to FMVSS 302).
6. What is the Mean Sound Reduction Index (Rw) for ArmaSound Barrier H?
   The Mean Sound Reduction Index (Rw) for ArmaSound Barrier H varies by thickness:
   • 2mm thickness (approx. 5 kg/m²): $\ge 22\text{ dB}$
   • 3mm thickness (approx. 7.5 kg/m²): $\ge 25\text{ dB}$
   • 4mm thickness (approx. 10 kg/m²): $\ge 28\text{ dB}$
7. What are the typical thicknesses ArmaSound Barrier H is available in?
   ArmaSound Barrier H is commonly available in sheets or rolls with thicknesses of 2 mm, 3 mm, and 4 mm.
8. What are the common applications for ArmaSound Barrier H?
   It is specifically engineered for:
   • Industrial applications with metal jacketing, such as pipes, vessels, and equipment.
   • Noise control in oil and gas facilities, power generation, and manufacturing plants.
   • As a component within ArmaSound Industrial Systems, for comprehensive acoustic insulation.
9. How does ArmaSound Barrier H differ from ArmaSound Barrier E?
   While both are mass-loaded vinyl barriers from Armacell, ArmaSound Barrier H is specifically engineered for applications with metal jacketing, implying particular properties for optimal integration with hard outer coverings. Their specific physical properties (e.g., mass per unit area, tensile strength) and compliance with certain industrial standards might also vary slightly.
10. Does ArmaSound Barrier H contain harmful substances like lead or bitumen?
    No, a key benefit is that it is free of lead, unrefined aromatic oils, and bitumen, contributing to a safer and healthier environment.
11. What is the service temperature range for ArmaSound Barrier H?
    The service temperature range is typically from $-20\text{ °C}$ to $+85\text{ °C}$, with a continuous maximum operating temperature of $+65\text{ °C}$.
12. What international standards and certifications does ArmaSound Barrier H comply with?
    When used as part of a system with metal cladding and approved non-Armacell acoustic insulation, ArmaSound Barrier H complies with stringent standards such as ISO 15665 Classes A, B, and C and Shell DEP 31.46.00.31-Gen Class D. It also satisfies NORSOK R-004 acoustic classes 6, 7, and 8.
13. Is ArmaSound Barrier H flexible and easy to install?
    Yes, it is highlighted as being flexible and easy to install, which is important for conforming to the contours of pipes and equipment.
14. What is the mass per unit area for ArmaSound Barrier H?
    • 2mm thickness: 4.8 to 5.50 kg/m²
    • 3mm thickness: 7.2 to 8.25 kg/m²
    • 4mm thickness: 9.7 to 11.0 kg/m²
15. Does ArmaSound Barrier H offer any thermal insulation properties?
    While its primary role is acoustic, as part of ArmaSound Industrial Systems, it is designed to be used with other thermal insulation materials (e.g., ArmaFlex, ArmaGel HT) to create a combined thermal and acoustic solution. The Barrier H itself provides minimal thermal resistance.
16. How does ArmaSound Barrier H contribute to reducing Corrosion Under Insulation (CUI)?
    While ArmaSound Barrier H itself doesn’t directly prevent CUI, it’s a component of ArmaSound Industrial Systems, which are designed to minimize the risk of CUI by effectively combining thermal insulation with robust outer protection (like Arma-Chek R), thus maintaining system integrity and preventing moisture ingress.
17. What is the typical shelf life of ArmaSound Barrier H?
    The maximum shelf life is typically 3 years when stored indoors in clean, dry conditions, away from direct sunlight.
18. Is ArmaSound Barrier H suitable for offshore and marine environments?
    Yes, its compliance with industry standards like ISO 15665 and NORSOK R-004 confirms its suitability for demanding offshore and marine environments, where robust acoustic and fire performance are critical.
19. Where can one purchase the ArmaSound Barrier H in Bahrain and Saudi Arabia?
    Gitco-sa.com, as an authorized distributor and partner of Armacell in Saudi Arabia and Bahrain, would be a primary supplier for ArmaSound Barrier H. They would carry this product as part of their comprehensive Armacell acoustic insulation solutions.
20. Why choose a specialized supplier like Gitco-sa.com for ArmaSound Barrier H in Bahrain/Saudi Arabia? Choosing a specialist ensures access to genuine Armacell products, coupled with deep technical expertise in industrial acoustic and thermal insulation. Gitco-sa.com can provide tailored solutions that meet the specific requirements of large-scale industrial projects in the region, ensuring compliance with local regulations and international standards, along with reliable supply and technical support for optimal system performance.
