Description

ArmaSound RD 240, also referred to as RD240, is a state-of-the-art, highly flexible, and hydrophobic open-cell acoustic insulation material. Crafted from NBR/PVC synthetic rubber elastomeric foam with a complex pore geometry, it delivers exceptional sound absorption and damping performance, even at reduced thicknesses. This makes it an ideal choice for applications where space is limited but high acoustic attenuation is critical. Gitco-sa.com, as an authorized Armacell distributor in Saudi Arabia and Bahrain, proudly offers this innovative solution for a range of acoustic insulation needs in industrial, OEM, and energy sectors. ArmaSound RD 240 is designed to operate across a broad temperature range from -20°C to 105°C, ensuring consistent performance in diverse environments. Its declared thermal conductivity is competitive, with λd​ at 0.043 W/(m·K) at 0°C and 0.045 W/(m·K) at 20°C, providing additional thermal insulation benefits. The material exhibits practical fire behavior, being self-extinguishing with a low burn rate. Its excellent sound absorption properties are demonstrated by its Weighted Sound Absorption Coefficient (αw​) and Noise Reduction Coefficient (NRC) values, which increase with thickness, achieving up to 0.75 (αw​) and 0.85 (NRC) for 50mm thickness. The complex pore structure ensures effective airborne sound absorption across a broad frequency range. Additionally, ArmaSound RD 240 is fiber-free, contributing to improved indoor air quality.

Key Features of ArmaSound RD 240:

• Optimal Acoustic Performance at Lower Thicknesses: Achieves significant sound absorption with compact material.
• Highly Flexible: Adapts easily to complex shapes and surfaces.
• Hydrophobic: Resists moisture absorption, maintaining performance in humid conditions.
• Open-Cell with Complex Pore Geometry: Maximizes sound absorption and damping.
• Wide Service Temperature Range: Effective from -20°C to 105°C.
• Thermal Insulation Benefits: Competitive thermal conductivity values.
• Practical Fire Behavior: Self-extinguishing with a low burn rate.
• Fiber-Free: Contributes to better indoor air quality.

Product Variations of ArmaSound RD 240:

ArmaSound RD 240 is available in various thicknesses, with corresponding acoustic performance data:

• 6mm thickness: αw​ = 0.15 (Class E), NRC = 0.25
• 10mm thickness: αw​ = 0.35 (Class D), NRC = 0.55
• 15mm thickness: αw​ = 0.5 (Class D), NRC = 0.70
• 20mm thickness: αw​ = 0.6 (Class C), NRC = 0.80
• 25mm thickness: αw​ = 0.65 (Class C), NRC = 0.85
• 30mm thickness: αw​ = 0.7 (Class C), NRC = 0.85
• 40mm thickness: αw​ = 0.7 (Class C), NRC = 0.85
• 50mm thickness: αw​ = 0.75 (Class C), NRC = 0.85 The density of the material is approximately 240 kg/m³. ArmaSound RD 240 can also be enhanced with optional coverings for increased durability, fire performance, or specific aesthetic needs, and self-adhesive options may be available for faster installation. For specific dimensions, sheet sizes, and available options, please contact Gitco-sa.com.

Know more about ArmaSound RD 240:

1. What is ArmaSound RD 240?
   ArmaSound RD 240 is a highly flexible, hydrophobic, open-cell acoustic insulation material from Armacell, based on synthetic rubber. It features a complex pore geometry designed for excellent sound absorption.
2. What are the primary functions of ArmaSound RD 240?
   Its main functions are high-performance sound absorption, contributing to noise reduction in various applications, and offering both vibration-damping and decoupling (isolation) properties.
3. What kind of noise does ArmaSound RD 240 effectively reduce?
   It is a high-performance sound absorber, primarily reducing airborne sound. It’s effective across a broad frequency range due to its open-cell structure and complex pore geometry.
4. What is the material type and color of ArmaSound RD 240?
   It is an elastomeric foam based on NBR/PVC synthetic rubber, and its color is black.
5. What are the key acoustic performance metrics for ArmaSound RD 240?
   It offers excellent sound absorption behavior. The Noise Reduction Coefficient (NRC) and Weighted Sound Absorption Coefficient (αw​) vary by thickness, with higher thicknesses providing better absorption (e.g., 25mm thickness can achieve an NRC of 0.70 and αw​ of 0.55 (Class C)).
6. What is the fire performance rating of ArmaSound RD 240?
   ArmaSound RD 240 has excellent fire performance. It is self-extinguishing, does not drip, and does not spread flames. It typically achieves Class 1 for surface spread of flame (BS 476 Part 7) and can have a < 25 flame spread index (ASTM E84).
7. What are the common applications for ArmaSound RD 240?
   It is widely used in:

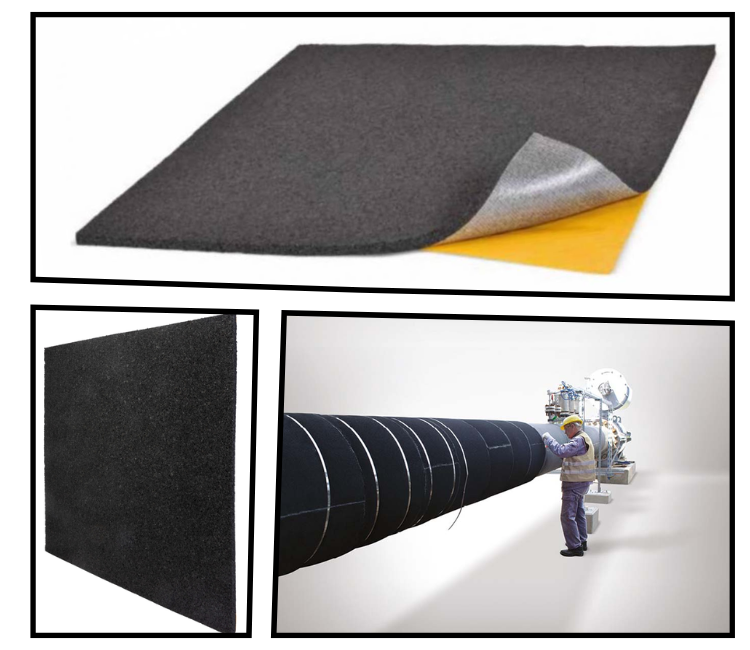

   • Industrial applications: As a component of ArmaSound Industrial Systems for acoustic insulation on pipework and vessels, contributing to the reduction of sound transmission.
   • General applications: Fan-coil units, duct linings, cabinet linings, chiller systems, enclosures, and pipelines.
8. Is ArmaSound RD 240 resistant to water or moisture?
   Yes, it is characterized as highly hydrophobic, with an open-cell structure designed to resist water ingress (water absorption $\le 10\%$ by volume after 24 hours).
9. What are the typical thicknesses ArmaSound RD 240 is available in?
   ArmaSound RD 240 is commonly available in sheets with thicknesses of 6 mm, 10 mm, 15 mm, 20 mm, and 25 mm. A 50mm option might also be available.
10. Does ArmaSound RD 240 offer any thermal insulation properties?
    Yes, while primarily an acoustic product, as an elastomeric foam, it also provides thermal insulation. Its declared thermal conductivity (λd​) is $\le 0.062 \text{ W/(m·K)}$ at $0\text{ °C}$.
11. Is ArmaSound RD 240 suitable for demanding industrial environments like oil and gas?
    Yes, it is explicitly designed for use in demanding environments, including the oil and gas industry. It is compliant with standards like ISO 15665 Classes A to C and Shell DEP 31.46.00.31-Gen Class D, and satisfies NORSOK R-004 acoustic classes 6, 7, and 8.
12. Is ArmaSound RD 240 available with a self-adhesive backing?
    Yes, ArmaSound RD 240 sheets are available with a self-adhesive option, which can facilitate easier and quicker installation.
13. What is the density of ArmaSound RD 240?
    Its density is typically in the range of 220 to 360 kg/m³, which contributes to its effective sound absorption and damping properties.
14. What is the service temperature range for ArmaSound RD 240?
    The service temperature range is typically from $-20\text{ °C}$ to $+85\text{ °C}$.
15. Is ArmaSound RD 240 fiber and dust-free?
    Yes, a key benefit is that it is fiber- and dust-free, making it a cleaner and safer material to handle and install, contributing to healthier indoor air quality.
16. What adhesives are recommended for installing ArmaSound RD 240?
    Armaflex Adhesive 520 or HT625 is typically recommended for reliable adhesion of joints and seams for ArmaSound RD 240.
17. Can ArmaSound RD 240 be used for vibration damping?
    Yes, its visco-elastic properties help dampen or deaden resonance effects in metal panelwork (e.g., enclosures or ducting), reducing re-radiation effects and structure-borne noise transmission.
18. What kind of chemical resistance does ArmaSound RD 240 offer?
    It generally offers very good resistance to organic solvents, mineral oils, and dilute inorganic acids & bases.
19. Where can one purchase ArmaSound RD 240 in Bahrain and Saudi Arabia?
    Gitco-sa.com, as an authorized distributor and partner of Armacell in Saudi Arabia and Bahrain, would be a primary supplier for ArmaSound RD 240. They carry Armacell’s comprehensive range of acoustic and thermal insulation products.
20. Why choose a specialized supplier like Gitco-sa.com for ArmaSound RD 240 in the Bahrain/Saudi Arabia?
    Choosing a specialist like Gitco-sa.com ensures access to genuine Armacell products, coupled with deep technical expertise in acoustic and thermal insulation for challenging industrial and commercial applications. They can provide tailored solutions, ensure compliance with regional project specifications and safety standards, and offer reliable local supply and technical support for optimal performance in the Middle East’s demanding environment.
