Description

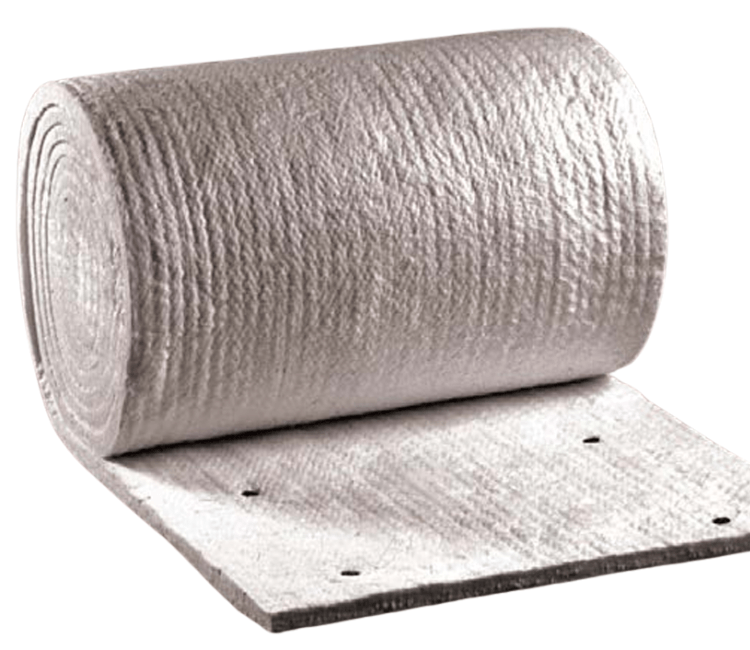

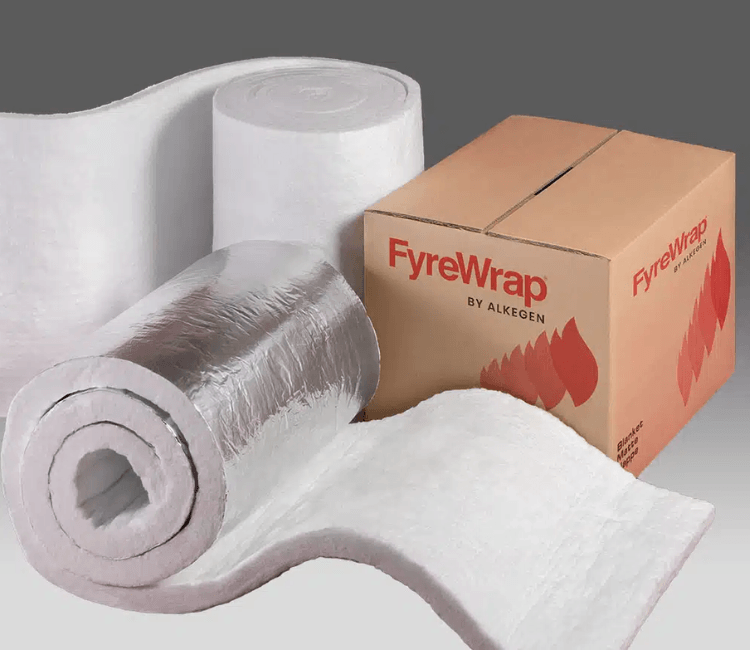

FyreWrap® Marine is a flexible, high-temperature insulation blanket engineered to provide passive fire protection for marine vessels and offshore structures. It is designed for applications where fire safety, weight reduction, space efficiency, thermal insulation and acoustic performance are critical.

FyreWrap Marine systems provide fire-rated protection for bulkheads and decks and are suitable for structures exposed to both cellulosic and hydrocarbon fire conditions. Alkegen identifies applications across cruise ships, high-speed ferries, luxury yachts, naval vessels, offshore platforms, FPSO units and other marine structures.

Gitco supplies technical insulation and passive fire protection solutions for industrial and infrastructure projects across Saudi Arabia. Contact our team for FyreWrap Marine product information, technical documentation and project requirements.

What Is FyreWrap Marine?

FyreWrap Marine is a totally inorganic, flexible, high-temperature insulation blanket manufactured using Alkaline Earth Silicate (AES) fiber technology. Alkegen states that its proprietary fiber-spinning and mechanical-needling process eliminates the need for binders, producing a material with high tensile strength and strong thermal and acoustic properties.

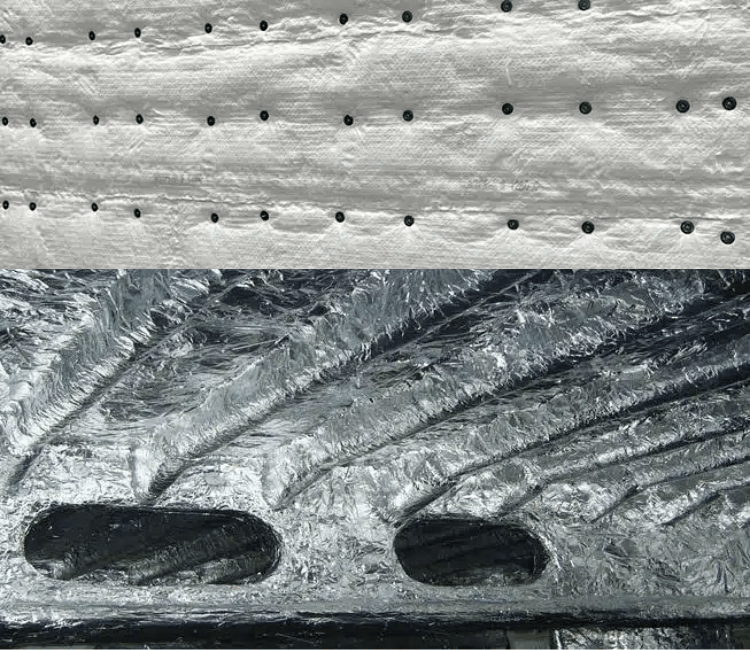

The flexible blanket format allows the material to be cut and contoured around stiffeners, beams and corrugated or complex plate profiles, helping installers achieve effective fire protection in areas where rigid insulation systems may be difficult to accommodate.

According to Alkegen, FyreWrap Marine has been used for marine fire insulation for more than 30 years.

Key Benefits of FyreWrap Marine

1. Lightweight Passive Fire Protection

Weight is a major consideration in marine engineering. Every additional kilogram can affect vessel design, payload capacity, fuel consumption and overall performance.

FyreWrap Marine is available in thin and lightweight system designs that can reduce the contribution of fire insulation to overall structural weight. Alkegen notes that lower-weight designs may contribute to increased vessel speed, fuel savings and available payload.

2. Fire-Rated Divisions from A15 to H120

FyreWrap Marine systems are designed for a broad range of marine fire-rated divisions, from A15 through H120, depending on the specific tested system and application.

Alkegen states that the systems are tested in accordance with IMO FTP Resolution MSC.307(88), the 2010 FTP Code, with applicable international certifications and approvals.

This makes FyreWrap Marine suitable for demanding marine and offshore fire protection requirements.

3. Suitable for Cellulosic and Hydrocarbon Fire Exposure

Marine and offshore installations can face different fire scenarios depending on the vessel type and operating environment.

FyreWrap Marine is designed for structures exposed to both cellulosic and hydrocarbon fires, providing a flexible passive fire protection solution for demanding applications.

4. Flexible and Easy to Install

The flexible blanket can be cut and shaped to follow the contours of:

• Steel bulkheads
• Aluminum bulkheads
• Decks
• Beams
• Stiffeners
• Corrugated plates
• Pipes
• Exhaust systems

This flexibility helps reduce complicated fabrication and allows installers to work efficiently around existing structural features.

5. Three-in-One Protection

One of the major advantages of FyreWrap Marine is its ability to provide a combination of:

Fire + Thermal + Acoustic Insulation

This can help marine designers and vessel owners address multiple insulation requirements using a single flexible material system.

6. High-Temperature Performance

FyreWrap Marine is engineered for high-temperature applications. The product information identifies a 2300°F (1260°C) temperature grade and a 2390°F (1310°C) melting point.

Its high-temperature performance makes it suitable for demanding passive fire protection applications in engine rooms, exhaust systems and marine structural assemblies.

7. Non-Combustible Insulation

FyreWrap Marine is described by Alkegen as non-combustible and tested according to the applicable marine fire-testing requirements. The product information identifies non-combustibility according to EN ISO 1182.

8. Resistant to Humidity and Water Exposure

Marine insulation systems must withstand challenging environmental conditions.

Alkegen states that the thermal properties of FyreWrap Marine are unaffected following water immersion or exposure to high humidity.

This characteristic makes the material particularly relevant to marine and offshore environments.

FyreWrap Marine Applications

Marine Bulkheads

FyreWrap Marine can be used as passive fire protection insulation for steel and aluminum bulkheads in marine structures.

Applications include:

• Passenger vessels
• Cruise ships
• Ferries
• Naval vessels
• Luxury yachts
• Offshore accommodation modules

Marine Decks

Fire-rated deck assemblies can use FyreWrap Marine systems to help achieve the required fire resistance while maintaining a lightweight construction.

Offshore Platforms

Offshore oil and gas facilities require robust fire protection systems capable of operating under demanding environmental conditions.

FyreWrap Marine is suitable for specified applications on:

• Offshore oil platforms
• FPSO units
• Offshore accommodation modules
• Marine support structures

Engine Rooms

Engine rooms contain numerous high-temperature components and equipment. FyreWrap Marine can be used in specified fire protection applications around engine-room structures and related systems.

Exhaust Ducts and Pipes

FyreWrap Marine can be used for passive fire protection insulation around specified exhaust ducts and pipes where high-temperature protection is required.

Vehicle Loading Bays

Marine vehicle carriers and ferries can require fire-rated protection around vehicle loading and storage areas. FyreWrap Marine provides a flexible insulation approach for applicable assemblies.

Marine Applications

FyreWrap Marine is suitable for a wide range of marine and offshore structures, including:

• Cruise ships
• High-speed ferries
• Water taxis
• Naval vessels
• Military defense vessels
• Luxury yachts
• Offshore platforms
• FPSO units
• Accommodation modules
• Engine rooms
• Vehicle loading bays
• Storage areas
• Exhaust ducts and pipes

Alkegen specifically identifies these vessel and application categories in its FyreWrap Marine product information.

Certifications and Standards

Marine fire protection requires compliance with highly regulated international standards.

FyreWrap Marine systems are tested and certified for applicable marine applications, including:

• IMO FTP Code
• IMO MSC.307(88)
• SOLAS safety objectives
• MED certifications
• U.S. Coast Guard requirements
• Lloyd’s Register
• DNV
• Bureau Veritas

Alkegen’s product information also identifies U.S. Coast Guard compliance under applicable regulations and marine certification information from recognized organizations.

Important: Certification and fire-rating claims depend on the specific FyreWrap Marine system, assembly, configuration and approval. Project specifications should always be checked against the applicable Alkegen certification and the requirements of the responsible marine authority, flag state, classification society, and project consultant.

Technical Highlights

Property	FyreWrap Marine
Product Type	Flexible high-temperature insulation blanket
Application	Marine & offshore passive fire protection
Chemistry	Alkaline Earth Silicate (AES)
Temperature Grade	Up to 2300°F / 1260°C
Melting Point	Approx. 2390°F / 1310°C
Fire Divisions	A15 to H120, depending on system
Non-Combustibility	EN ISO 1182
Surface Burning	ASTM E84
Flame Spread	0
Smoke Developed	0
Fire Exposure	Cellulosic and hydrocarbon
Main Functions	Fire, thermal and acoustic insulation
Form	Flexible blanket
Typical Applications	Bulkheads, decks, exhaust ducts, pipes and marine structures

Technical values are based on Alkegen’s FyreWrap Marine product information and should be verified against the latest project-specific technical documentation.

Why Choose FyreWrap Marine?

Marine construction demands insulation that can deliver high fire performance without adding unnecessary weight or consuming valuable space.

FyreWrap Marine combines several important advantages:

Thin and Lightweight

Helps reduce the weight contribution of fire protection systems.

Flexible

Can be wrapped and contoured around complex marine structures.

High Temperature

Designed for demanding high-temperature environments.

Non-Combustible

Provides a non-combustible insulation solution for specified marine assemblies.

Fire, Thermal and Acoustic Performance

Can address three insulation requirements within one system.

Reduced Installation Complexity

Simple installation techniques and mechanical fixing systems can help reduce installation labor.

Space Efficient

The flexible, thin design is suitable for areas where available installation space is limited.

These characteristics are particularly valuable in marine engineering, where weight, space, and fire safety are closely interconnected.

Why Source FyreWrap Marine from Gitco in Saudi Arabia?

Gitco provides technical insulation and specialized engineering products for customers across Saudi Arabia.

Our team can support:

• Marine contractors
• Offshore contractors
• Oil & gas companies
• EPC contractors
• Shipyards
• Engineering consultants
• Industrial project owners
• MEP and insulation contractors

Gitco can assist with product information, technical documentation, and project-specific requirements for FyreWrap Marine applications.

Whether your requirement is for an offshore platform, FPSO, marine vessel, engine room, bulkhead, deck or exhaust system, our technical team can help you identify the appropriate insulation solution.

FyreWrap Marine for Saudi Arabia’s Marine & Offshore Industry

Saudi Arabia’s growing maritime, offshore, and energy infrastructure creates increasing demand for high-performance fire protection materials.

FyreWrap Marine can support projects where passive fire protection must combine:

Fire Safety + Thermal Protection + Acoustic Performance + Low Weight + Space Efficiency

For marine and offshore projects along the Red Sea and Arabian Gulf, selecting an appropriately tested and certified passive fire protection system is essential.

Frequently Asked Questions

What is FyreWrap Marine?

FyreWrap Marine is a flexible, high-temperature insulation blanket from Alkegen designed for passive fire protection applications in marine and offshore structures.

What is FyreWrap Marine used for?

It is used for specified fire-rated bulkhead and deck systems, exhaust ducts and pipes, engine rooms, offshore platforms, FPSO units and other marine applications.

What fire ratings are available?

Alkegen identifies FyreWrap Marine systems ranging from A15 to H120, depending on the tested assembly and application.

Is FyreWrap Marine suitable for offshore applications?

Yes. Alkegen specifically identifies offshore platforms, FPSO units and accommodation modules among its applications.

Is FyreWrap Marine non-combustible?

Alkegen’s product information identifies FyreWrap Marine as non-combustible according to applicable testing, including EN ISO 1182.

Can FyreWrap Marine provide acoustic insulation?

Yes. Alkegen identifies the system as providing a combined fire, thermal and acoustic insulation solution.

Where can I buy FyreWrap Marine in Saudi Arabia?

Contact Gitco for FyreWrap Marine product availability, technical documentation and project requirements in Saudi Arabia.

Get FyreWrap Marine in Saudi Arabia

Protect your marine and offshore structures with a lightweight, flexible and high-temperature passive fire protection solution.

FyreWrap Marine by Alkegen is engineered for demanding marine environments where fire safety, weight, space and installation efficiency matter.

Contact Gitco today for FyreWrap Marine technical information, availability and project support across Saudi Arabia.

Gitco – Technical Insulation & Passive Fire Protection Solutions Across KSA
